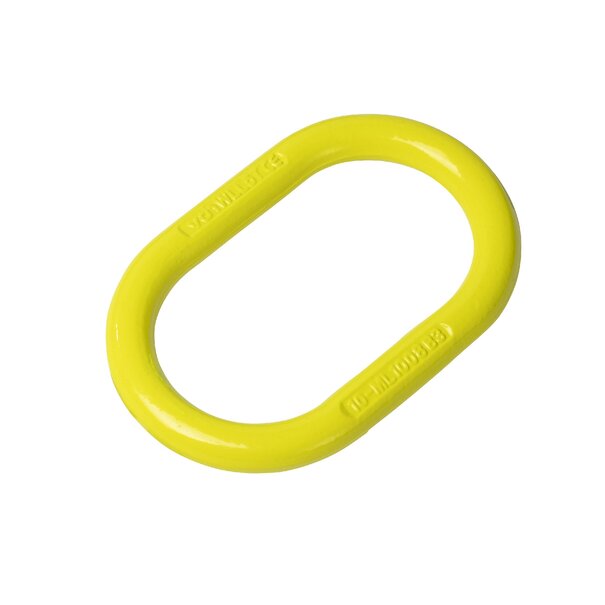

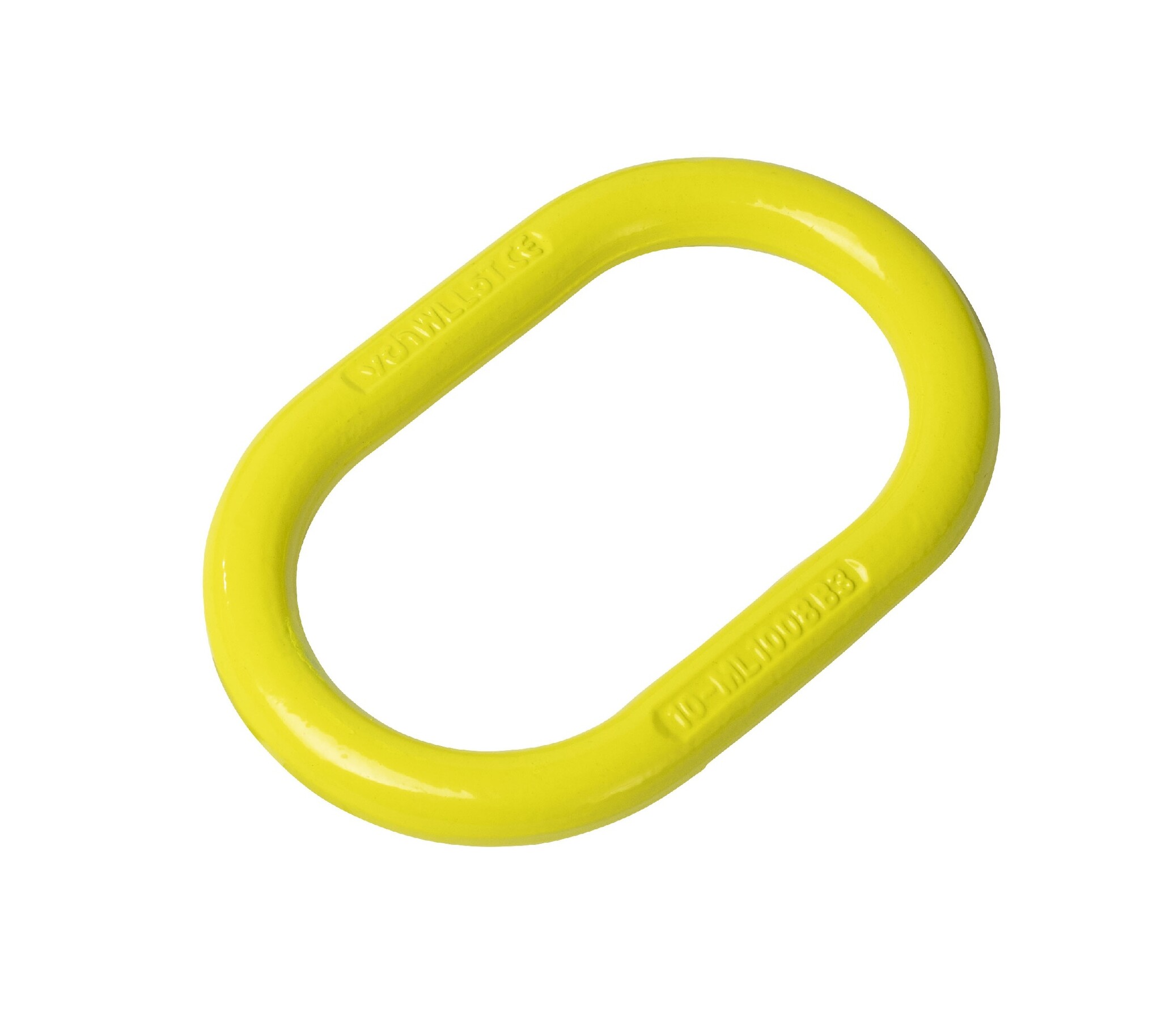

Master link | 1-leg and 2-leg, Grade 100
--,--
Master link | 1-leg and 2-leg, Grade 100
Artikelnummer: 1020101.07
- Tbv Leng: 6 - 16 mm
- Tbv 2-sprong: 6 - 13 mm
- Hijslast: 2,3 - 10 ton
- Materiaal: Grade 100
- Custom made & specials manufactured in the Netherlands!
- Importeur - Beste prijs & prestatieverhouding!
- Warehouse with 2.000+ pallets of lifting & hoisting materials!
- Alle hijsmaterialen standaard geleverd inclusief certificaat!
Product information
Description
Top links are used as the top component of a chain assembly used to drive the assembly into the crane hook. The 10-ML top link is mainly used for a chain forerunner or a chain twin. See the diagram which top link can be used for which chain. For three- and four-jumps, top links with gradient links must be used since you may only use 2 bearing links per top link/ring.
Article number: 1020101.07

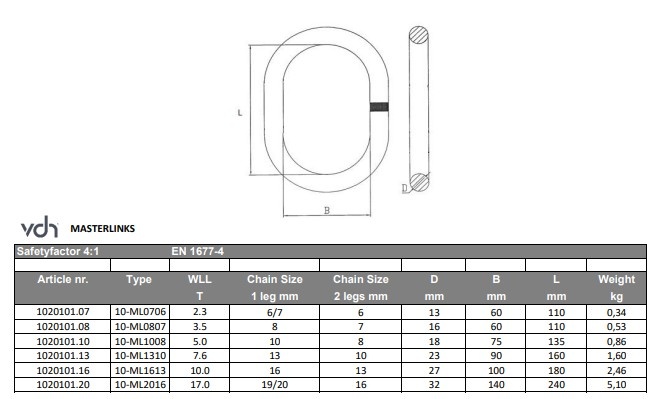

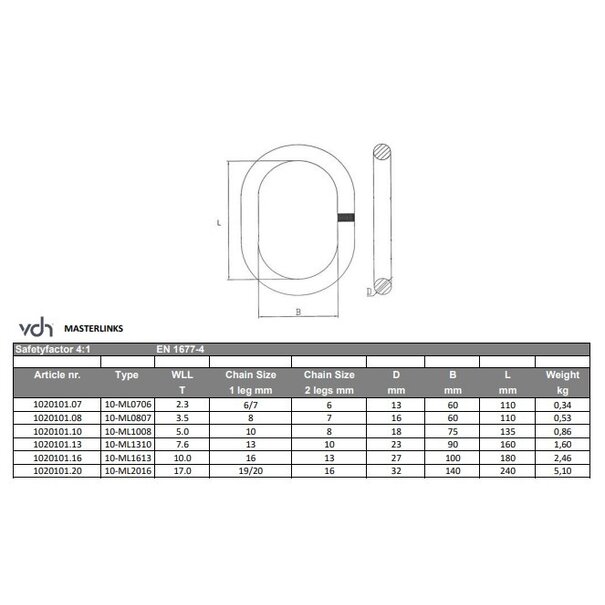

Specifications
| Article number | See options |
| Type | 10-ML0706 - 10-ML1613 |
| WLL (4:1) | 2,3 - 10 ton |
| Chain Size | 6 - 16 mm |
| Material | Grade 100 |
| Norm | EN 1677-4 |
